EKOM DK50 9X4VRT Industrial Air Compressor

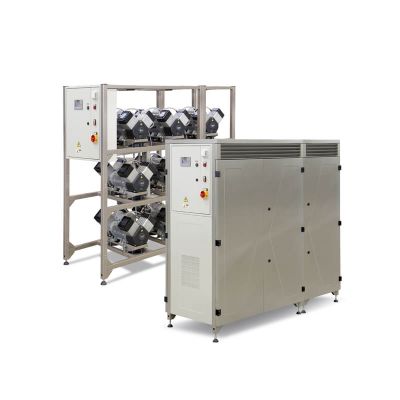

The EKOM DK50 9x4VRT TOWER system delivers clean, oil-free compressed air.

The low noise compact compressor delivers 2,325 litres / min at 7 bar and works within a pressure range of 6-8 or 8-10 bar.

Product Description

DK50 9x4VRT/M – Without soundproofing box with dryer
DK50 9x4VRT/S/M – With soundproofing box and dryer

The DK50 9x4VRT/M has 9 independently running pumps that can adjust depending on the demand. It has a Siemens control panel that can monitor all aspects of the tower, from pressure regulation to dew point. This can all be viewed via the LED touch screen display or remotely via BMS system.

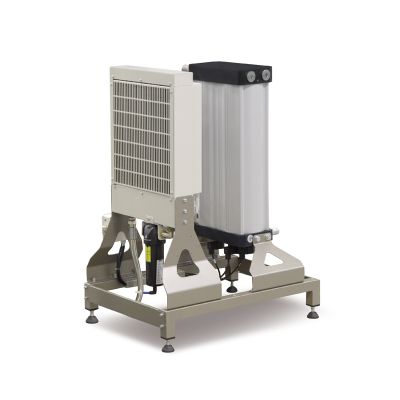

This unit is available with 2 dryer options. Refrigeration will provide a +3 pressure dewpoint, compared to the NPSL dryer which will deliver a -40 pressure dewpoint @ 7 bar.

Adding the soundproof box will reduce the decibel level to 72dB(A) It has a high quality cooling system within the cabinet to help the pumps run at optimum temperature.

Please note this unit requires 3 phase power supply.

Tech Specs

  • 2,325 L/min @ 7 bar
  • Centralised System
  • 9 synchronised running motors
  • 500 L tank
  • Refrigeration or NPSL dryer option
  • 415V/3PH/50Hz Power supply required
  • Internally coated tank
  • ISO 8573.1 – Up to class 1 air quality

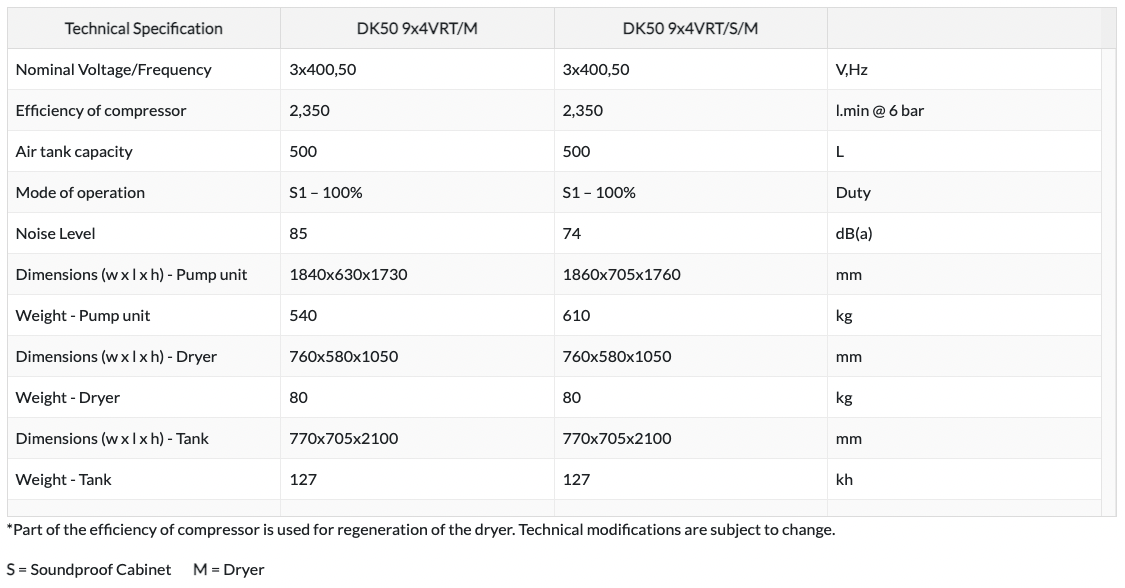

Specification Table

Technical Graphs
